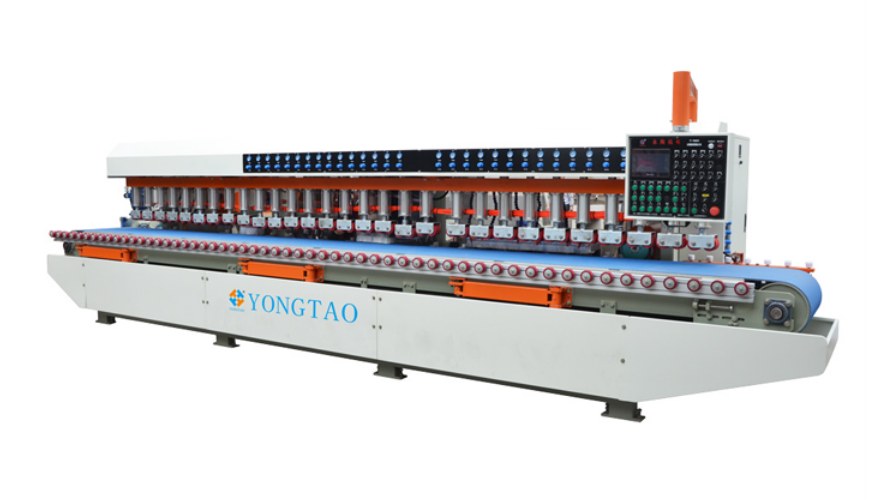

YCYP-2500 Quartz Countertop Edge Polishing Machine
Yongtao quartz countertop edge polishing machine processes various edge shapes with high precision and efficiency, boosting productivity for all stone countertops.
Product introduction
Description of YCYP-2500 Quartz Countertop Edge Polishing Machine
YCYP-2500 Quartz Countertop Edge Polishing Machine,The machine is mainly used to process the quartz countertop edges. It can do R3 round edge, calibrating, grooving, flat polishing. The machine have special pressure structure, each press roller drive bu independent cylinder. The structure can provide enough pressure when process different width slab at same time, to make sure whole processing is stable. It can be used as quartz straight edge polisher, quartz flat edge polisher, quartz eased edge polisher, quartz pencil round polisher and quartz double radius polisher.
Stone Edge Shapes by YCYP-2500 Quartz Countertop Edge Polishing Machine
1. Pencil Edge 2. chamfer 3. bevel 4. bevel edge 5. 1/8" Radius 6. 1/8" Round 7. 3/16" Round 8. Round Top & Bottom 9. Eased edge 10. Flat edge
Parameter of YCYP-2500 Quartz Countertop Edge Polishing Machine
Machine specifications
| Nos. Of flat trimming head | 1pc |
|---|---|
| Nos. offlat polish head | 6pc |
| Nos. Of calibrating head | 1pc |
| Nos. Of calibrating polishing head | 2pc |
| Nos. Of groove head | 1pc |
| Nos. Of R3 round polishing on top | 2pc |
| Nos. Of R3 round polishing on bottom | 6pc |
| Processing width | 600-2500mm |
| Processing speed | 0.3-4m/min |
| Max processing thickness | 60mm |
| Total power | 32.7kw |
| Air consumption | 50L/min |
| Water consumption | 400L/min |
| Size of machine | 7.5m*2.1m*1.8m |
| Weight | About6800 kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
